4.3inch Capacitive Touch Screen LCD (B), 800×480, HDMI, IPS, Various Devices & Systems Support

Status: Còn hàng

Trademark: Waveshare

Code: 15932

5 View

Contact

+ IPS screen, 800x480 hardware resolution, configurable by software (up to 1920x1080)

+ Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, and Banana Pi, as well as general desktop computers

+ When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free

+ When working as a computer monitor, supports Windows 10/8.1/8/7, five-point touch, and driver-free

+ Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.

+ 3.5mm audio jack, speaker connector, supports HDMI audio output

Present

Free shipping radius TOÀN QUỐC

Contact support for detailed quote: Hotline: 0386365636

Buy at Vina Connect Showroom See directions

ARTICLE CONTENT:

4.3inch Capacitive Touch Screen LCD (B), 800×480, HDMI, IPS, Various Devices & Systems Support

4.3" HDMI Touch Display

Size4.3"
Resolution800×480
Display InterfaceHDMI
Display PanelIPS
Viewing Angle160°
Touch TypeCapacitive
Touch Points5-Points
Touch PortUSB
OSD MenuBrightness/Contrast
Audio Output13.5mm Jack
Audio Output24PIN Header
GamingXbox360/PS4/Switch
CertificationCE

Device & System Support

Raspberry Pi

Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-points touch, driver free

Game Console

Xbox360, PS4, Switch...

Connection Examples

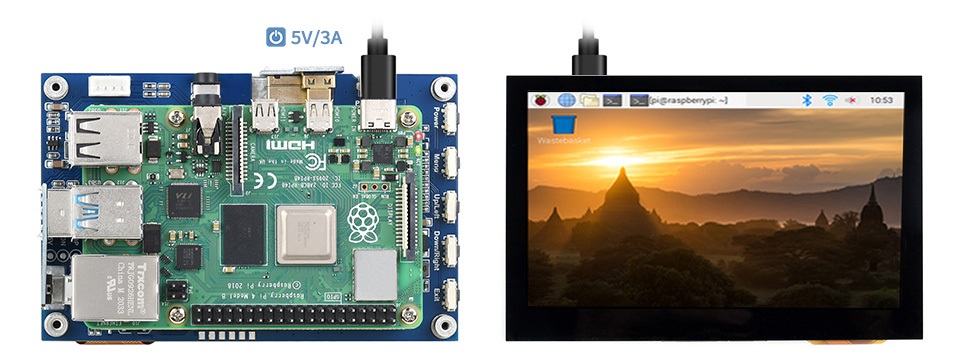

Working with Raspberry Pi 4

Working with Raspberry Pi Zero W

Working with AI Computer Jetson Nano

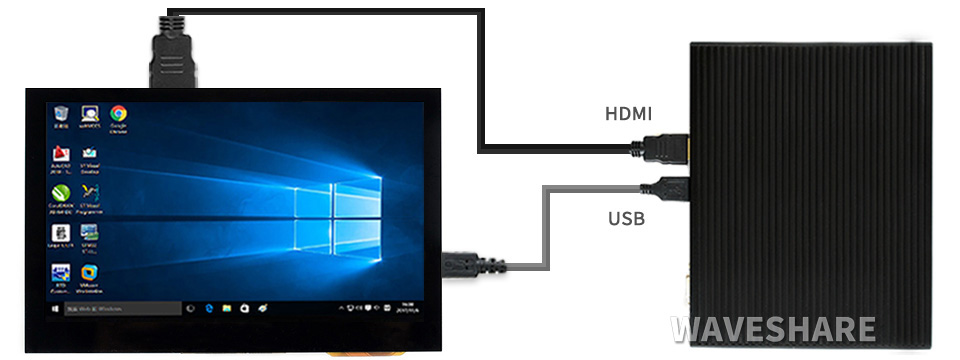

Working with mini PC

Display

IPS Panel

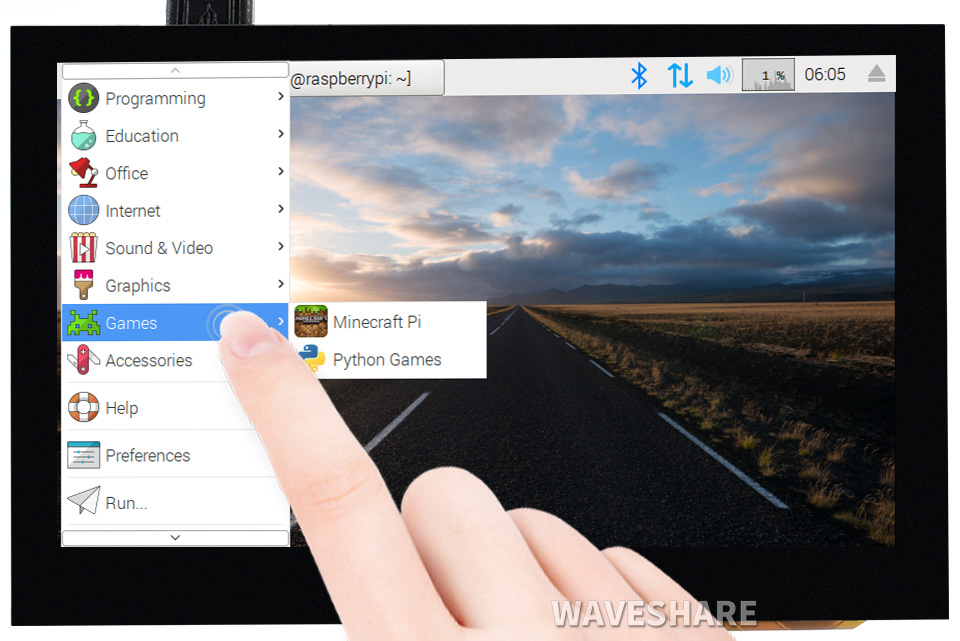

Touch Control

1) up to 5-points touch, depending on the operating system.

Enjoy Gaming

Appearance and Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/4.3inch_HDMI_LCD_(B)

Product Certification

HDMI Certified

CE Certified

* This display is in compliance with CE standard.

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumber	Display				Touch				Audio		Device Support
PartNumber	Resolu-tion	Display Port	Display Panel	View Angle	Touch Type	Touch Port	Toughened Glass Panel	Optical Bonding	Spe- aker	Signal Output	Pi	JETSON NANO	PC
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
2.8inch RPi LCD (A)	320×240	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.2inch RPi LCD (B)	320×240	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (A)	480×320	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (B)	480×320	SPI	IPS	160°	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (C)	480×320	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (F)	320×480	SPI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
3.5inch RPi LCD (G)	320×480	SPI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	×
4inch RPi LCD (A)	480×320	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD	480×640	DPI	IPS	160°	Capacitive	I2C	√	√	×	×	√	×	×
3.5inch DPI LCD	640×480	DPI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
4inch DPI LCD (C)	720×720	DPI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
5inch DPI LCD	800×480	DPI	IPS	160°	–	–	×	×	×	×	√	×	×
7inch DPI LCD	1024×600	DPI	IPS	170°	–	–	×	×	×	×	√	×	×
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only.
2.8inch DSI LCD	480×640	DSI	IPS	160°	Capacitive	I2C	√	√	×	×	√	×	×
3.4inch DSI LCD (C)	800×800	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
3.4-DSI-TOUCH-C	800×800	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
3.5inch DSI LCD (E)	640×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
3.5inch DSI LCD (H)	480×800	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
4inch DSI LCD	480×800	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4inch DSI LCD (C)	720×720	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4-DSI-TOUCH-C	720×720	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4.3inch DSI LCD	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI LCD (with case)	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI QLED	800×480	DSI	IPS(QLED)	160°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (B)	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (C)	1024×600	DSI	IPS	178°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (D)	720×1280	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
5-DSI-TOUCH-A	720×1280	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
5inch Raspberry Pi Touch Display 2	720×1280	DSI	IPS	160°	Capacitive	I2C	×	×	×	×	√	×	×
6.25inch DSI LCD	720×1560	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
7inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with case A)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with cam)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with cam and case)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (B)	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (B) (with case A)	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (C)	1024×600	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (C) (with case A)	1024×600	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (E)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
7-DSI-TOUCH-A	720×1280	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
7-DSI-TOUCH-C	1024×600	DSI	IPS	170°	Capacitive	I2C	×	×	×	×	√	×	×
7inch DSI LCD (H)	1280×720	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
7.9inch DSI LCD	400×1280	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
8-DSI-TOUCH-A	800×1280	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
8inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
8inch DSI LCD (with cam)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
8inch DSI LCD (C)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
8.8inch DSI LCD	480×1920	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
9-DSI-TOUCH-B	720×1280	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
10.1-DSI-TOUCH-A	800×1280	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
10.1-DSI-TOUCH-B	720×1280	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
10.1inch DSI LCD (C)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
11.9inch DSI LCD	320×1480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
12.3-DSI-TOUCH-A	720×1920	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
13.3inch DSI LCD	1920×1080	DSI	IPS	178°	Capacitive	I2C	√	×	×	×	√	×	×
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly.
2.8inch HDMI LCD (H)	480×640	HDMI	IPS	160°	Capacitive	USB-C / I2C	√	√	×	×	√	√	√
3.2inch HDMI LCD (H)	480×800	HDMI	IPS	160°	×	×	×	×	×	×	√	√	Display ONLY
3.4inch 800x800 LCD	800x800	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
3.5inch HDMI LCD	480×320	HDMI	IPS	160°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
3.5inch 480x800 LCD	480×800	HDMI	IPS	170°	Capacitive	USB-C	×	×	×	×	√	√	√
4inch 720x720 LCD	720x720	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
4inch HDMI LCD	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
4inch HDMI LCD (C)	720×720	HDMI	IPS	170°	Capacitive	USB-C / I2C	√	√	×	√	√	√	√
4inch HDMI LCD (H)	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
4.3inch HDMI LCD (B)	800×480	HDMI	IPS	160°	Capacitive	USB	×	×	×	√	√	√	√
5DP-CAPLCD-H	1024×600	HDMI	IPS	178°	Capacitive	Type-C	√	×	×	√	√	√	√
5DP-CAPLCD-B	1024×600	HDMI	IPS	178°	Capacitive	Type-C	√	√	×	√	√	√	√
5DP-CAPLCD-G	1024×600	HDMI	IPS	178°	Resistive	Type-C	√	×	×	√	√	√	√
5inch HDMI LCD	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (with bicolor case)	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (B)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (B) (with bicolor case)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (G)	800×480	HDMI/VGA	TFT	–	Resistive	USB	×	×	×	√	√	×	√
5inch HDMI LCD (H)	800×480	HDMI/VGA	TFT	–	Capacitive	USB	√	×	×	√	√	√	√
5inch HDMI LCD (H) V4	800×480	HDMI	TFT	–	Capacitive	USB	√	×	×	×	√	×	√
5inch HDMI AMOLED	960×544	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	√	√
5inch 1080x1080 LCD	1080×1080	HDMI	IPS	160°	Capacitive	Type-C	√	√	√	√	√	√	√
5inch 720x1280 LCD	720×1280	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	×	√	√	√
5.5inch HDMI AMOLED	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	√	√
5.5inch HDMI AMOLED (with case A)	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	×	×
5.5inch 1440x2560 LCD	1440×2560	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	×	√
5.5inch 1440x2560 LCD (with case A)	1440×2560	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	×	×
6.25inch 720x1560 LCD	720×1560	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	×	√	√	√
PI5-HMI-7A	720×1280	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	×	√	×	×
7EP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
7EP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
7inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
7inch HDMI LCD (B)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (B) (with bicolor case)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C) (with bicolor case)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (H)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	×	×	×	√	√	√	√
7inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
7HP-CAPQLED	1024×600	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
7.9inch HDMI LCD	400×1280	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
7.9inch Side Monitor	400×1280	HDMI	IPS	170°	×	×	√	×	√	×	√	√	√
7.9inch Touch Monitor	400×1280	HDMI	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
PI5-HMI-080D	1280×800	HDMI	IPS	178°	Capacitive	Type-C	√	√	×	×	√	×	×
8DP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
8HP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
8inch 768x1024 LCD	768×1024	HDMI	IPS	178°	Capacitive	Type-C	√	×	√	√	√	√	√
8inch 1536x2048 LCD	1536×2048	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
8.8inch Side Monitor	480×1920	HDMI	IPS	170°	×	×	×	×	√	×	√	√	Display ONLY
9HP-CAPQLED-B	1280×720	HDMI	IPS (QLED)	178°	Capacitive	USB	√	×	×	√	√	√	√
9.3inch 1600x600 LCD	1600×600	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
9.7inch 768x1024 LCD	768×1024	HDMI	IPS	178°	Capacitive	Type-C	√	×	√	√	√	√	√
PI5-HMI-101D	1280×800	HDMI	IPS	178°	Capacitive	Type-C	√	√	×	×	√	×	×
10.1inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
10.1inch HDMI LCD (B) (with case)	1280×800	HDMI	IPS	170°	Capacitive	USB	√	×	×	×	√	×	√
10.1inch HDMI LCD (E)	1024×600	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	√	√
10.1inch HDMI LCD (G) (with case)	1920×1200	HDMI	IPS	160°	Capacitive	USB	√	√	√	√	√	√	√
10.1inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	TFT	–	Capacitive	USB	×	×	×	×	√	√	√
10.1inch HDMI LCD (F) (with case)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
10.1EP-CAPLCD	1920×1200	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
10.1DP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
10.1HP-CAPQLED	1280×720	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
10.1HP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
10.4HP-CAPQLED	1600×720	HDMI	IPS(QLED)	178°	Capacitive	Type-C	√	√	√	√	√	√	√
10.5inch HDMI AMOLED	2560×1600	HDMI	AMOLED	160°	Capacitive	USB	√	√	√	√	√	√	√
11.6inch 1768x828 LCD	1768×828	HDMI/Type-C	IPS	178°	Capacitive	Type-C	In-Cell	×	×	√	√	√	√
11.6inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
11.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
11.9inch HDMI LCD	320×1480	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
11.9inch Side Monitor	320×1480	HDMI	IPS	170°	×	×	√	×	√	×	√	√	√
11.9inch Touch Monitor	320×1480	HDMI	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
12.3inch 1920x720 LCD	1920×720	HDMI/Type-C	IPS	178°	Capacitive	Type-C	In-Cell	×	×	√	√	√	√
12.3inch HDMI LCD	1920×720	HDMI	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
13.3inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
13.3inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
13.3inch HDMI LCD (H) (with case) V2	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
13.3inch QHD AMOLED	2560×1440	HDMI/Type-C	AMOLED	178°	Capacitive	Type-C	√	√	√	√	√	√	√
13.3inch FHD AMOLED	1920×1080	HDMI/Type-C	AMOLED	178°	Capacitive	Type-C	√	√	√	√	√	√	√
13.3inch FHD Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C	√	×	×	√	√	√	√
14-Portable-Monitor	1920×1200	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
14inch Dual Monitor	1920×1080	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
15.6-Portable-Monitor	1920×1080	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
15.6inch FHD Monitor (C)	1920×1080	mini HDMI/Type-C	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
15.6inch Dual Monitor	1920×1080	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
15.6inch HDMI LCD	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
15.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
15.6inch FHD Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C / USB	√	×	√	√	√	√	√
15.6HP-CAPQLED	1920×1080	HDMI	IPS(QLED)	178°	Capacitive	USB	√	√	×	√	√	√	√
15.6inch QLED Monitor	1920×1080	HDMI	IPS(QLED)	178°	Capacitive	Type-C	√	√	√	√	√	√	√
18.5inch Dual Monitor	1920×1080	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
18.5inch FHD LCD	1080×1920	HDMI/Type-C	IPS	178°	Capacitive	Type-C	√	√	×	√	√	√	√
18.5-Portable-Monitor	1920×1080	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
18.5-Touch-Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
18.5-4K-Portable-Monitor	3840×2160	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
21.5inch FHD LCD	1080×1920	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
21.5inch FHD Monitor	1080×1920	HDMI	IPS	170°	Capacitive	Type-C	√	√	√	×	√	√	√
21.5-Portable-Monitor	1920×1080	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
24.5-2K-Portable-Monitor	2560×1440	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√

Weight: 0.259 kg

4.3inch HDMI LCD (B) x 1
HDMI cable x1
USB-A to Micro-B cable x1
HDMI Adapter (B) x1
USB Adapter (B) x1
HDMI Adapter (C) x1
USB Adapter (C) x1
Screws pack x1

4.3inch Capacitive Touch Screen LCD (B), 800×480, HDMI, IPS, Various Devices & Systems Support

Selection Guide

Request a quote

Product model
