What is the FLUKE 62 MAX Plus thermometer?

The FLUKE 62 MAX Plus (Fluke 62 MAX+) infrared thermometer is a non-contact temperature measuring device that utilizes advanced infrared technology. With its ability to accurately and quickly measure temperature without direct contact with the object, the FLUKE 62 MAX Plus is an ideal tool for engineers, contractors, and mechanics in monitoring and inspecting the temperature of equipment, machinery, and systems in a variety of environments.

With its compact design, high durability, and numerous smart features, the FLUKE 62 MAX Plus infrared thermometer offers users an efficient, accurate, and safe temperature measurement solution.

FLUKE 62 MAX+ (62 MAX Plus) Infrared Thermometer | Infrared (IR) Thermometer

Detailed description of the FLUKE 62 MAX Plus infrared thermometer (-30°C to 650°C)

The FLUKE 62 MAX+ infrared thermometer is equipped with infrared technology to measure temperature without physical contact. This minimizes the risk of damage and facilitates measurements of extremely hot or hard-to-reach surfaces. The device features an infrared sensor with a measurement range of up to 12:1, allowing for measurements of small objects from a distance.

The device features a large, backlit LCD screen displaying temperature, making it easy to read results even in dark or low-light environments. Furthermore, the FLUKE 62 MAX Plus is equipped with high/low temperature alerts, allowing users to quickly detect abnormal temperature points.

With an IP54 dust and water resistance rating, the FLUKE 62 MAX Plus can operate in harsh environments without being affected by dust or moisture. This device is also designed to withstand drops from heights up to 3 meters, ensuring long-lasting durability.

Choose FLUKE 62 MAX Plus – a product that stands out not only for its quality and precision but also for the unwavering commitment from the FLUKE brand , helping you improve work efficiency and keep your equipment in optimal working condition.

FLUKE 62 MAX+ (62 MAX Plus) Infrared Thermometer | Infrared (IR) Thermometer

Comparing the differences between the FLUKE 62 MAX Plus and FLUKE 62 MAX infrared thermometers.

Both the FLUKE 62 MAX Plus and FLUKE 62 MAX infrared thermometers are quality products from Fluke, but there are some notable differences:

1. Temperature range
   • The FLUKE 62 MAX Plus has a measuring range from -30°C to 650°C, suitable for applications requiring higher temperature measurements.
     The FLUKE 62 MAX has a measuring range from -30°C to 500°C, suitable for moderate temperature measurement tasks.
2. Accuracy
   • The FLUKE 62 MAX Plus has an accuracy of ±1.0°C or ±1%, allowing for more precise measurements.
     The FLUKE 62 MAX has an accuracy of ±1.5°C or ±1.5%.
3. Distance/point ratio
   • The FLUKE 62 MAX Plus has a 12:1 ratio, allowing for measurements from greater distances.
     The FLUKE 62 MAX has a 10:1 ratio, suitable for nearby objects.
4. Design and durability
   • Both models meet the IP54 dust and water resistance standard and can withstand drops from 3 meters. However, the 62 MAX Plus is improved for impact resistance in industrial environments.
5. Application
   • The FLUKE 62 MAX Plus is suitable for tasks requiring high and accurate temperature measurement, such as in heavy industry.
     The FLUKE 62 MAX is an excellent choice for basic applications in light equipment maintenance.
6. Value and cost
   • The FLUKE 62 MAX Plus is more expensive due to its enhanced features.
     The FLUKE 62 MAX is suitable for budget-conscious users and basic measurement needs.

The FLUKE 62 MAX Plus is the superior choice for tasks requiring high accuracy and a wide measuring range, while the FLUKE 62 MAX is a more affordable option for simpler, cost-effective applications.

Technical specifications of the FLUKE 62 MAX Plus (Fluke 62 MAX+) infrared thermometer.

The FLUKE 62 MAX Plus (62 MAX+) infrared thermometer has the following outstanding technical specifications:

• Temperature range: -30°C to 650°C (-22°F to 1202°F)
• Accuracy: ±1% or ±1°C, whichever is greater.
• Resolution: 0.1°C (0.2°F)
• Distance/point ratio (D:S): 12:1
• Response time (95%): <500 ms
• Emissivity: From 0.10 to 1.00 (adjustable)
• Infrared sensor: Reflects infrared waves from 8 to 14 microns.
• Measurement repeatability: ±0.8% or ±2°F (1°C), whichever is greater.
• Power source: AA batteries, can be used continuously for 8 hours with laser and backlight on.
• Protection standard: IP54 (dust and water resistant)
• Impact resistant: Tested by dropping from a height of 3 meters (9.8 feet).
• Dimensions: 175 x 85 x 75 mm
• Weight: 255 g

FLUKE 62 MAX+ (62 MAX Plus) Infrared Thermometer | Infrared (IR) Thermometer


Key features of the FLUKE 62 MAX Plus (62 MAX+) infrared thermometer.

The FLUKE 62 MAX Plus (62 MAX+) infrared thermometer stands out with its superior features that increase work efficiency and ensure high accuracy in all situations:

1. Measurement distance and measurement point ratio (D:S) up to 12:1.
With a distance/measurement point ratio of 12:1, the device allows users to measure the temperature of objects at long distances while maintaining high accuracy. This ratio makes measurements in large areas or on small objects easier.

2. High Accuracy and Wide Measurement Range:
The device has a measurement range from -30°C to 650°C (-22°F to 1202°F) and an accuracy of up to ±1°C or ±1%, whichever is greater. This allows for the measurement of the temperature of most materials and equipment, from cold surfaces to high temperatures.

3. Large LCD Screen with Backlight
The FLUKE 62 MAX Plus's large, backlit LCD screen makes it easy for users to read results even in low light or dark environments. Indicators are clearly displayed and easy to understand, including Min/Max/Avg/Dif (lowest, highest, average, and difference temperatures).

4. Temperature Warning Feature:
The device is equipped with high and low temperature warning features, allowing users to quickly detect abnormal temperature points. This is particularly useful in temperature monitoring applications for electronic devices, engines, and machinery parts.

5. Robust and Durable Design:
The FLUKE 62 MAX Plus thermometer is impact-resistant from heights up to 3 meters and has an IP54 dust and water protection rating. This ensures stable operation in harsh environments such as construction sites, manufacturing plants, or humid areas.

6. Simple and Easy to Use:
With its compact design, the device can be easily carried, attached to a belt, or stored in a tool bag. Using the device is also very simple; just aim it at the object to be measured and press the button to get a quick result.

FLUKE 62 MAX+ (62 MAX Plus) Infrared Thermometer | Infrared (IR) Thermometer

See also: FLUKE 64 MAX Non-Contact Infrared Thermometer

Uses of the FLUKE 62 MAX Plus (62 MAX+) infrared thermometer

The FLUKE 62 MAX+ infrared thermometer can be used in a wide variety of fields and applications thanks to its non-contact temperature measurement feature and high accuracy:

1. Applications in maintenance and repair

• The FLUKE 62 MAX Plus infrared thermometer is the ideal tool for inspecting electrical equipment, motors, machinery, and other devices during maintenance and repair. Temperature measurement helps to detect problems such as overheating, malfunctions, or breakdowns in electrical and mechanical systems in a timely manner.

2. Inspect electrical equipment and machinery.

• With its ability to measure the temperature of electrical equipment such as electrical cabinets, transformers, compressors, or motors, the FLUKE 62 MAX Plus helps detect potential hot spots, minimizing the risk of fire and equipment damage.

3. Inspect and monitor the HVAC system.

• The FLUKE 62 MAX Plus infrared thermometer is also very useful for inspecting and monitoring HVAC (heating, cooling, and air conditioning) systems. Measuring temperature helps ensure the system is operating efficiently and detects problems such as blockages, leaks, or loss of performance.

4. Applications in manufacturing and production

• The FLUKE 62 MAX Plus infrared thermometer helps monitor the temperature of components in the production line, ensuring product quality and preventing incidents when temperatures exceed permissible limits.

FLUKE 62 MAX+ (62 MAX Plus) Infrared Thermometer | Infrared (IR) Thermometer

Accessories compatible with FLUKE 62 MAX+ infrared thermometer (-30°C to 650°C)

To optimize the performance and usability of the FLUKE 62MAX-Plus (62 MAX+) infrared thermometer , users can combine the device with the following accessories:

1. Carabiner

• A convenient accessory allows users to easily carry the FLUKE 62 MAX Plus infrared thermometer while working, which can be attached to a belt or tool bag.

2. Fluke TB25 Tool Bag

• This is a 5.2-gallon tool bag designed to protect and store the FLUKE 62 MAX Plus and other measuring instruments. The bag features multiple compartments, making it easy to organize and carry your essential equipment.

3. Spare AA batteries

• Spare AA batteries ensure your meter is always ready for use throughout the workday without worrying about running out of power.

The FLUKE 62 MAX Plus (62 MAX+) non-contact thermometer is a reliable tool for technicians and professionals in a wide range of industries. With its durable design, high accuracy, and intelligent features, it's an ideal choice for tasks requiring quick and precise temperature checks.

Free carrying bag for Fluke 62 max and 62 max+

FLUKE 62 MAX Plus (MAX+) Infrared Thermometer Kit

The FLUKE 62 MAX Plus (62 MAX+) non-contact infrared thermometer functions as a professional non-contact temperature measuring device, designed to deliver high accuracy and durability in all measurement tasks. The FLUKE 62 MAX Plus (62 MAX+) kit includes the following main components:

• FLUKE 62 MAX Plus thermometer: Measures temperature quickly and accurately without contact.
• Carabiner: A hook that makes it easy to carry the camera.
• Instructions for use: Provides detailed information on how to use and store the product.
• 3-year warranty: Guaranteed long-term use.

Additionally, users can purchase extra accessories such as a tool bag, AA battery charger, and sensor filter.

The FLUKE 62 MAX Plus (62 MAX+) infrared thermometer is available in several different packaging versions to suit the needs of various customers. Below are the basic differences between the versions:

• Standard version: Includes the meter, carabiner, user manual, and a three-year warranty. This is a popular and suitable option for individual users or technicians needing basic temperature measurements in light industrial environments.
• Fluke TB25 Tool Bag Version: This version not only includes the standard components but also comes with a tool bag, providing protection and easy portability for the thermometer when working outdoors or in construction and manufacturing environments.
• Version with additional accessories: This version offers additional accessories such as a battery charger, replacement temperature sensors, or emissivity adjustment filters to increase accuracy when measuring on different materials.

Each version is designed to meet specific application needs, from simple maintenance tasks to high-precision industrial projects.

Free carrying bag for Fluke 62 max and 62 max+

Features and advantages of the FLUKE 62 MAX Plus infrared thermometer (-30°C to 650°C)

Key features of the FLUKE 62 MAX Plus (62 MAX+) infrared thermometer.

The FLUKE 62 MAX Plus (62 MAX+) non-contact thermometer is not just a conventional temperature measuring tool, but a specialized device with many outstanding features. Below are the features that make the FLUKE 62 MAX Plus an ideal choice in the industry:

• 12:1 Measurement Range: One of the notable features of the FLUKE 62 MAX Plus is its measurement range/point ratio of up to 12:1. This means you can measure the temperature of small objects from a distance while maintaining high accuracy. With this ratio, you don't need to get close to hazardous equipment or parts to measure temperature, saving time and increasing safety at work.
• High accuracy: The FLUKE 62 MAX Plus thermometer has a measuring range from -30°C to 650°C (-22°F to 1202°F), with an accuracy of ±1% or ±1°C (depending on the measured value), giving you accurate and reliable measurement results.

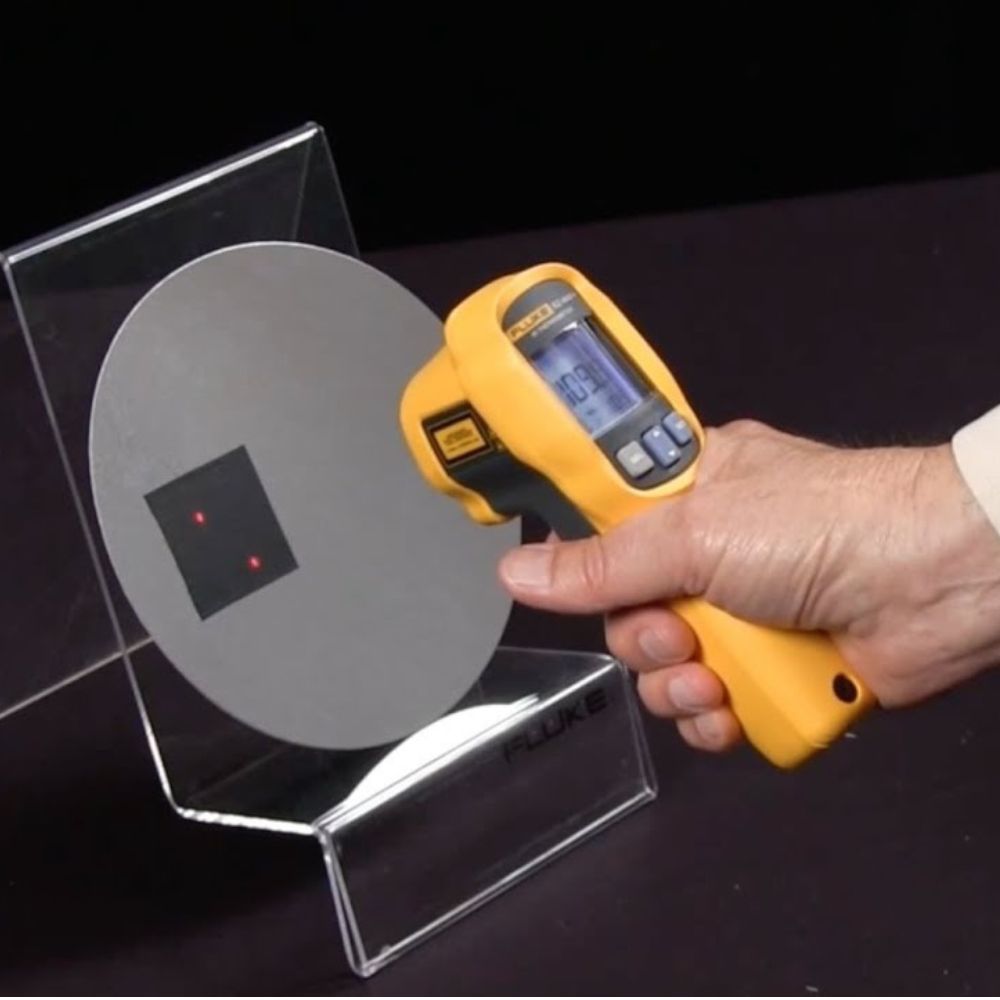

• Dual lasers support precise measurements: The FLUKE 62 MAX Plus is equipped with a dual laser system, making it easy to accurately pinpoint the measurement location, especially when measuring on small or hard-to-reach surfaces.
• Backlit LCD screen: The FLUKE 62 MAX Plus's screen has a large backlight, making it easy to read results even in low light or dark environments. This is crucial for outdoor maintenance or equipment testing.
• Robust and dustproof design: With an IP54 protection rating, the FLUKE 62 MAX Plus is dustproof and waterproof, ensuring reliable operation even in harsh industrial environments.
• Impact resistance: The FLUKE 62 MAX Plus can withstand impacts from heights up to 3 meters, protecting the device from damage during use in harsh work environments.

Advantages of the FLUKE 62 MAX Plus (62 MAX+) infrared thermometer

The FLUKE 62 MAX Plus infrared thermometer not only offers high accuracy but also boasts many outstanding advantages, making it suitable for a wide range of applications. Here are some of the product's advantages:

• Easy to use: The FLUKE 62 MAX Plus is designed to be compact and user-friendly. Simply aim at the object to be measured and press the button for instant results. Its lightweight and convenient handheld design makes it easy to carry throughout your work.
• Effective waterproofing and dust resistance: The FLUKE 62 MAX Plus infrared thermometer meets IP54 standards, allowing the device to operate effectively even in dusty, humid environments or in the rain.
• Long battery life: Equipped with long-lasting AA batteries, the device can be used continuously for approximately 8 hours with both the laser and backlight on. This saves you the cost of replacing batteries and is more convenient for outdoor work.
• Versatile measurement capabilities: The FLUKE 62 MAX Plus can measure the temperature of a wide variety of materials and equipment, from mechanical parts to electronic devices, motors, compressors, etc. This makes it an ideal tool for industrial, maintenance, construction, and many other applications.
• Temperature Over-Threshold Alert: With its high/low temperature alert feature, the FLUKE 62 MAX Plus helps you detect abnormal hot spots in a timely manner, allowing for quick intervention to avoid unwanted incidents.

Free carrying bag for Fluke 62 max and 62 max+

Instructions for using and maintaining the FLUKE 62 MAX Plus / 62 MAX+ infrared thermometer.

Instructions for using the FLUKE 62 MAX Plus (62 MAX+) infrared thermometer correctly.

Using the FLUKE 62 MAX Plus (62 MAX+) mini handheld thermometer is simple and easy. Below is a detailed guide on how to use this device:

• Step 1: Starting the device: Open the battery cover on the back of the device and insert AA batteries with the correct polarity. Then, turn on the power switch to start the device.
• Step 2: Select the object to be measured: Point the measuring device at the object whose temperature you want to measure. Aim at the point to be measured; the dual lasers will help you accurately determine the measurement area.
• Step 3: Read the results: After aiming the device at the object, the temperature will be displayed on the LCD screen. The device will provide parameters such as Min/Max/Avg/Dif so you can easily monitor temperature changes.
• Step 4: Turn off the machine: After use, turn off the machine to save energy. The machine will automatically turn off after a period of inactivity.

Proper care and maintenance of the FLUKE 62 MAX Plus (62 MAX+) infrared thermometer for optimal use.

To keep your FLUKE 62 MAX Plus thermometer in the best condition, please note the following:

• Store in a cool, dry place: When not in use, store the machine in a cool, dry place to prevent damage from excessive humidity or temperature.
• Regular cleaning: Use a soft, dry cloth to wipe the machine's surface, avoiding strong detergents that could damage the outer casing.
• Protect your device from impacts: Although the device is impact-resistant, you should still avoid direct contact with hard objects or dropping it from a great height.
• Replace the battery when necessary: ​​To ensure stable operation, replace the battery when you notice signs of low battery or unstable performance.

The FLUKE 62 MAX Plus (62 MAX+) infrared thermometer is an indispensable tool for technicians and professionals in industries requiring fast and accurate temperature measurements. With superior features such as high accuracy, remote measurement capability, durability, and ease of use, it is an ideal tool for maintenance and inspection of electrical and mechanical equipment.

Free carrying bag for Fluke 62 max and 62 max+



Frequently Asked Questions (FAQ) about the FLUKE 62 MAX Plus infrared thermometer (-30°C to 650°C)

1. What is the FLUKE 62 MAX Plus Infrared Thermometer?
The FLUKE 62 MAX Plus Infrared Thermometer is a non-contact temperature measuring device that uses advanced infrared technology. It allows for the measurement of object temperatures without direct contact, making it very useful in equipment maintenance and inspection applications.

2. What is the temperature measurement range of the FLUKE 62MAX-Plus?
The FLUKE 62 MAX+ infrared thermometer has a wide measurement range from -30°C to 650°C (-22°F to 1202°F), allowing it to measure the temperature of many types of materials and equipment in various environments.

3. What is the accuracy of the FLUKE 62 MAX Plus thermometer?
The FLUKE 62 MAX+ Handheld Infrared Laser Thermometer has an accuracy of up to ±1°C or ±1% of the measured value (whichever is greater). This ensures that the measurement results are always accurate and reliable.

4. How far away can the device measure the temperature of objects?
The FLUKE 62 MAX+ Handheld Infrared Laser Thermometer has a distance-to-point ratio of 12:1, meaning you can measure the temperature of small objects at a distance while maintaining high accuracy.

5. What are the special features of the FLUKE 62 MAX Plus infrared thermometer?
The Fluke 62 Max Plus infrared thermometer has special features such as a backlit LCD screen, high/low temperature alerts, and impact and water resistance, making it convenient to use in all working conditions.

6. In what environments can the FLUKE 62 MAX Plus thermometer be used?
With an IP54 dust and water protection rating, the Fluke 62 MAX Plus Infrared (IR) Thermometer can operate reliably in harsh environments, such as construction sites, manufacturing plants, and areas with high humidity or dust.

7. How long is the battery life of the FLUKE 62 MAX Plus measuring instrument?
The device uses AA batteries and has a battery life of up to 8 hours of continuous use with the backlight and laser on. This is long enough to complete a full workday of measurements.

8. Does the FLUKE FLK-62 MAX+ infrared thermometer support an alarm function?
Yes, the device is equipped with high and low temperature alarms, helping users easily detect abnormal temperature points and take timely action.

9. Is the FLUKE 62 MAX Plus thermometer easy to use?
The FLUKE 62 Max+ infrared thermometer (-30 ~ 650 °C) has a compact design, is easy to hold, and is easy to use. Users simply aim at the object to be measured and press the button for immediate results, which is very convenient and efficient.

10. Is the FLUKE 62-MAX+ affected by humidity or dust?
No, the device has IP54 dust and water resistance, so it can operate effectively in high-humidity or dusty environments without being affected.

11. Does the FLUKE 62MAX+ thermometer come with a warranty?
Yes, the Fluke 62MAX+ infrared thermometer has a 3-year manufacturer's warranty. This is a significant advantage, giving users peace of mind regarding the product's quality and durability.

12. Does the device include accessories?
The FLUKE 62 MAX Plus infrared thermometer comes with a carabiner (hanging hook) and user manual. You can purchase additional accessories such as a carrying case and spare batteries to optimize its use.

13. How much does the FLUKE-62-MAX+ infrared thermometer cost? The price of
the FLUKE-62-MAX+ infrared thermometer ranges from 1,700,000 VND to 4,000,000 VND at authorized distributors in Vietnam. You can also check for promotions to get the best price.

14. What materials can the Fluke 62 MAX+ infrared thermometer measure?
The Fluke 62 MAX+ infrared thermometer can measure the temperature of a wide variety of materials and equipment, from mechanical parts and machinery to electronic devices, motors, HVAC systems, and other industrial equipment.

15. How to best maintain the FLUKE 62 MAX Plus thermometer?
For best maintenance, store the device in a dry place, avoid strong impacts, and do not expose it to harsh detergents. Protect the device from excessive humidity and high temperatures to ensure its longevity.
