Fluke 289 Multimeter

Status: Còn hàng

Trademark: FLUKE

Code: Fluke 289

5 View

Contact

High-end multimeters specifically designed for industrial maintenance engineers, laboratories, and R&D .
Integrated TrendCapture – allows real-time graphs to be displayed directly on the device screen.
Automatic data logging saves up to 15,000 measurement points , supporting long-term device monitoring.
Extremely high accuracy: ±0.025% DC Voltage , display resolution up to 50,000 count .
Measure True RMS AC/DC , frequency, resistance, capacitance, temperature, current in μA, diode test, continuity test.
Compatible with FlukeView® Forms software – USB connection for analysis and report generation.
The large LCD screen features graphics , displays multiple pieces of information simultaneously, and is as easy to operate as a smart device.
The smart menu interface and smartphone-like navigation keys make it easy to learn and use.
Features include Peak Min/Max/Avg , value hold, low-pass filter, and real-time clock.
Compliant with CAT IV 600V / CAT III 1000V standards , ensuring absolute safety for industrial systems.

Present

Contact support for detailed quote: Hotline: 0386365636

Buy at Vina Connect Showroom See directions

ARTICLE CONTENT:

Introducing the Fluke 289 Multimeter
Features and specifications of Fluke 289
Advantages of the Fluke 289 multimeter
Applications of the Fluke 289 watch
Images of the Fluke 289 multimeter.

Introducing the Fluke 289 Multimeter

The Fluke 289 multimeter is one of Fluke's leading industrial products, manufactured in the USA. This is the latest generation measuring device, integrating many superior features, suitable for applications in electronics, factory automation, power distribution, and electromechanical equipment.

The Fluke 289 can store up to 15,000 measurement results thanks to its built-in TrendCapture memory. The device easily connects to wireless devices such as phones and laptops via the Fluke Connect software, allowing users to monitor and check measurement results remotely, improving work efficiency.

Fluke 289 Multimeter

Features and specifications of Fluke 289

The Fluke 289 multimeter is an advanced measuring instrument, manufactured in the USA, designed for applications in electronics, factory automation, power distribution, and electromechanical equipment. With its many outstanding features, the Fluke 289 delivers high performance for users:

The large ¼ VGA screen with 50,000 counts and white backlight displays a lot of detailed information.
The TrendCapture data logging function stores up to 10,000 measurement results.
Record multiple sessions or record data continuously for more than 200 hours.
The screen has an "i" button that provides information about the device's functions.
Low impedance voltage (LoZ) function for accurate voltage measurement.
Low-pass filters help to accurately measure voltage and frequency on inverters and other electrical noise devices.
The 50-ohm range is useful for measuring and comparing low resistance and contact resistance, with a resolution of 1 milliohm and a supply current of 10 mA.
Save and retrieve stored measurement data.
The real-time clock records the time along with the measurement data.
On-site upgrade capabilities allow for the addition of new features as needed.
The multilingual interface is user-friendly.
Min/Max/Average mode with timestamps to record signal changes.
Soft keys and a scroll wheel provide easy access to and control of auxiliary functions; custom screens can be created.
The accuracy of the basic DC current is 0.025%.
100 kHz AC frequency range, measures true RMS voltage and current.
Measures current up to 10A (20A for 30 seconds, 10A continuously).
Capacitance measurement range up to 100 mF, supporting temperature measurement and complex measurements.
Relative mode removes probe resistance from capacitance or low resistance measurements.
The peak value capture feature records the forward voltage in just 250 μs.
Includes measuring probe and premium alligator clips.
The optical USB interface makes it easy to transfer data to a computer using FlukeView Forms software.
An optional magnetic lanyard allows you to hang the measuring instrument for convenient viewing while working.
Lifetime warranty has limitations.
Meets safety standards CAT III 1000 V/CAT IV 600 V.

The Fluke 289 is an ideal choice for engineers and technicians who need a versatile device with superior accuracy and data storage capabilities.

Fluke 289 Multimeter

Advantages of the Fluke 289 multimeter

The Fluke 289 multimeter is designed with the following outstanding features:

The digital display is clear and easy to read.
High accuracy, user-friendly features, and safe to use.
Capable of measuring true RMS voltage and current.
Automatic or customizable measurement range options are available to suit your needs.
Equipped with a digital display, analog bar chart, and backlight for easy viewing in low-light conditions.
The convenient storage box features an integrated protective cover, enhancing durability.
The battery can be easily replaced without removing the casing, making it convenient to use.

Applications of the Fluke 289 watch

The Fluke 289 multimeter is a specialized device for measuring basic electrical parameters such as voltage, current, resistance, capacitance, frequency, and temperature. With high accuracy and diverse features, the Fluke 289 effectively assists engineers and technicians in testing and monitoring electrical systems, ensuring safe and stable electromechanical operations.

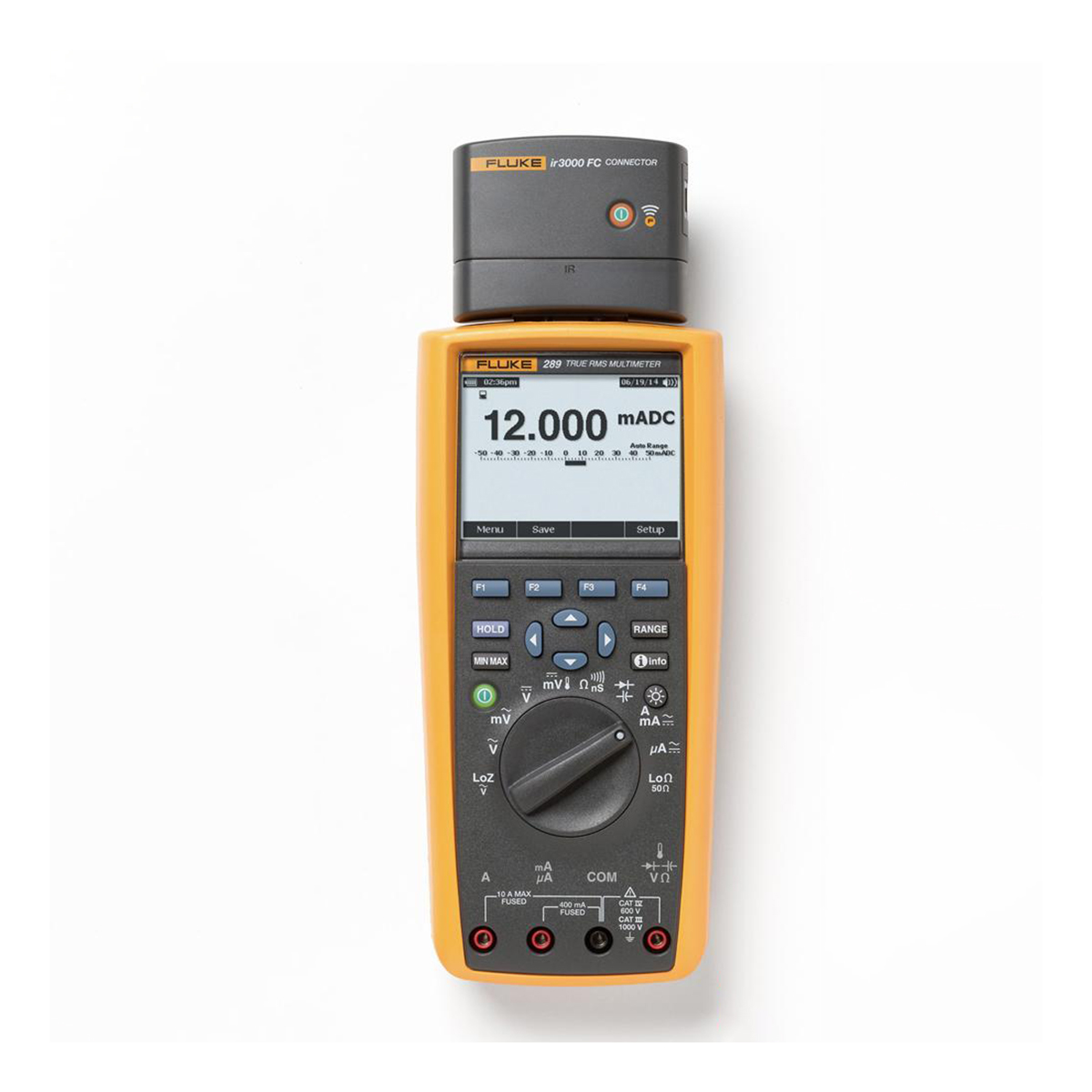

Images of the Fluke 289 multimeter.

Fluke 289 Specifications

DC voltage

Accuracy	0.025%
Measurement range and resolution	50,000 mV, 500.00 mV, 5.0000 V, 50,000 V, 500.00 V, 1000.0 V

AC voltage

Accuracy	0.4% (actual effective)
Measurement range and resolution	50,000 mV, 500.00 mV, 5.0000 V, 50,000 V, 500.00 V, 1000.0 V

DC current

Accuracy	0.06%
Measurement range and resolution	500.00 µA, 5000.0 µA, 50,000 mA, 400.00 mA, 5.0000 A, 10,000 A

AC current

Accuracy	0.61% (actual effective)
Measurement range and resolution	500.00 µA, 5000.0 µA, 50,000 mA, 400.00 mA, 5.0000 A, 10,000 A

Temperature (excluding probe)

Accuracy	1.0%
Measurement range and resolution	-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F)

Resistor

Accuracy	0.05%
Measurement range and resolution	50,000 Ω, 500.00 Ω, 5.0000 kΩ, 50,000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ

10 50 Ω resistor (2-wire connection)

Accuracy	0.15% + 20
Measurement range and resolution	50,000 Ω

Capacitance

Accuracy	1.0%
Measurement range and resolution	1,000 nF, 10.00 nF 100.0 nF, 1,000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.00 mF Ω

Fluke 289 frequency

Accuracy	0.005% + 5
Measurement range and resolution	99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz

Additional functions/features

Display more content on the screen.	Have
The frequency range of the actual effective AC current.	100 kHz
DBV/dBm	Have
mV resolution of AC current	1 μV
Megohm measurement range	Up to 500 M
Electrical conductivity	50.00nS
Continuity alarm	Have
Access the battery/fuse.	Battery/Fuse
Maximum value	250 μS
Timer	Have
Date clock	Have
Minimum-Maximum-Average	Have
Frequency	Have
Operating cycle	0.01% to 99.99%
Pulse width	0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
Hold	Have
Optically isolated interface port	Have
Automatic screen hold (Auto/Touch Hold)	Have
Read memory	Have
Write to computer	Have
Record the time/event	Have
Record memory	Up to 10,000 measurements
Low resistance Ohms	0.001 Ω to 50,000 Ω, 10 mA supply
Low impedance LoZ	Have
Low-pass filter	Have

Fluke 289 Environmental Specifications

Operating temperature

-20 °C to +55 °C

Storage temperature for Fluke 289

-40 °C to +60 °C

Relative humidity

	0% to 90% (0 °C – 37 °C)
	0% to 65% (37 °C – 45 °C)
	0 to 45% (45°C – 55°C)

Electromagnetic compatibility

EMC EN6 1326-1

Vibrate

Random vibration according to MIL-PRF-28800f Level 2

Impact

Withstands impact from a drop of 1 m according to IEC/EN 61010-1 second version.

Fluke 289 Safety Specifications

Fluke 289 Overvoltage Standard

Safety standards: CAT III 1000 V / CAT IV 600 V

Certification from safety organizations

CSA, UL, TÜV, CE

Fluke 289 General Specifications & Technical Information

The maximum voltage between any wire end and the ground wire.

1000V

Size

(HxWxD 22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in)

Fluke 289 Volume

870.9 g (28 oz)

Battery life

Minimum 100 hours, 200 hours in recording mode.

Battery type

6 AA alkaline batteries, IEC LR6
