This circular 4-mic array is a professional solution for adding voice interaction to projects. Powered by XMOS XVF3000 with built-in AI sound processing algorithms, it clearly picks up voices from any direction up to 5 meters away. Features 360° far-field voice pickup (up to 5m), AEC, AGC, DoA, beamforming, and noise suppression.
Free shipping radius COUNTRYWIDE
Contact support for detailed quote: Hotline: +84386365636
Buy at Vina Connect Showroom See directions
Feature

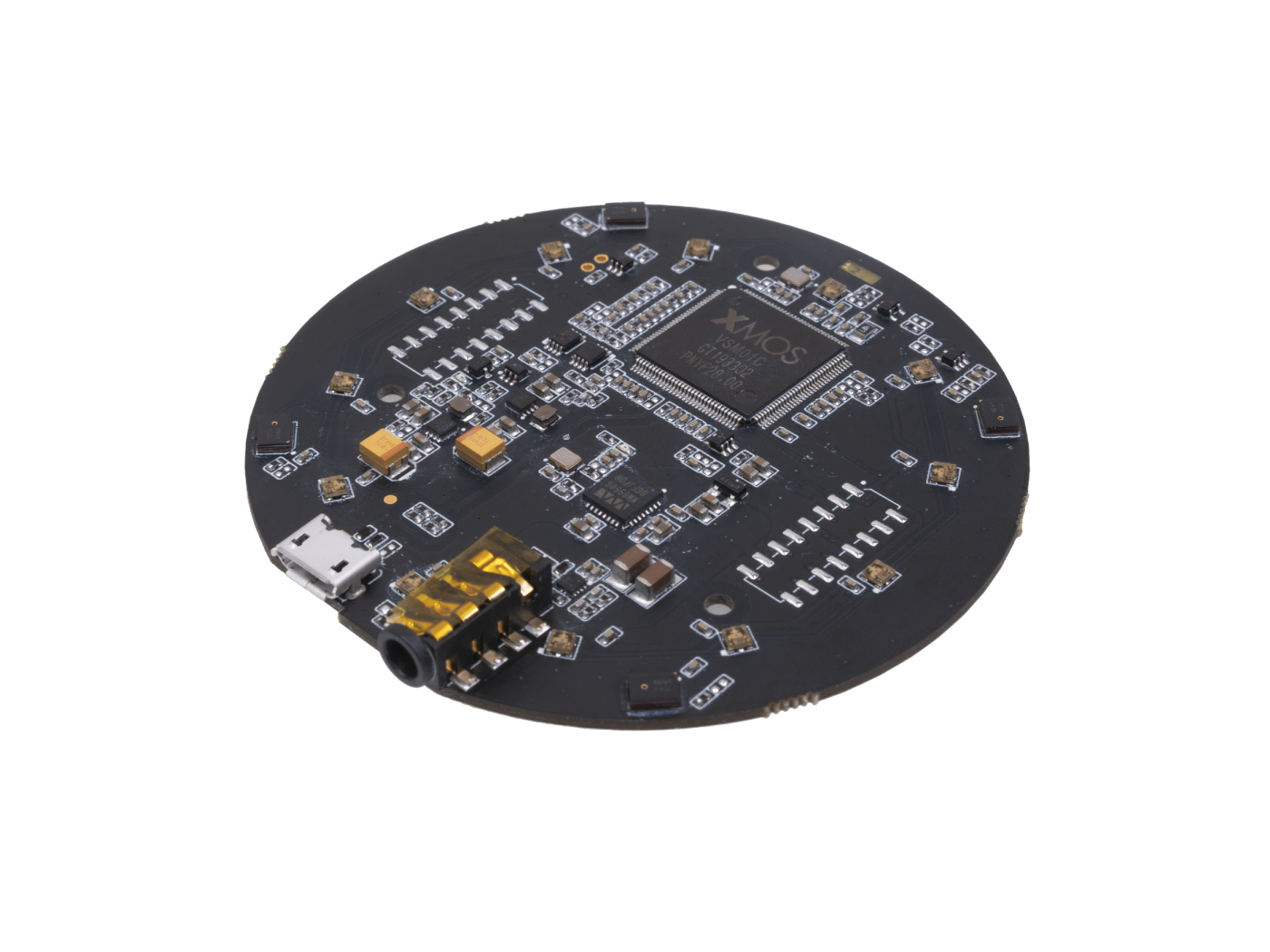

reSpeaker XVF3800 is a professional circular 4-microphone array based on XMOS XVF3800, enabling clear target voice capture in noisy environments. Features dual modes (I2S/USB), 360° far-field voice pickup (up to 5m), on-board AI acoustic algorithms (AEC, AGC, DoA, VAD, dereverberation, beamforming, and noise suppression).
Specification
|
Dimensions |
70mm x70mm x13.3mm |
|
Weight |
G.W 70g |
|
Sensitivity |
-26 dBFS (Omnidirectional) |
|
Acoustic overload point |
120 dBSPL |
|
SNR |
61 dB |
|
Power Supply |
5V DC from Micro USB or expansion header |
|
Power consumption |
5V, 180mA with led on and 170mA with led off |
|
Max Sample Rate |
16Khz |
Hardware Overview
Hardware Overview
Pin_Map
Dimension
