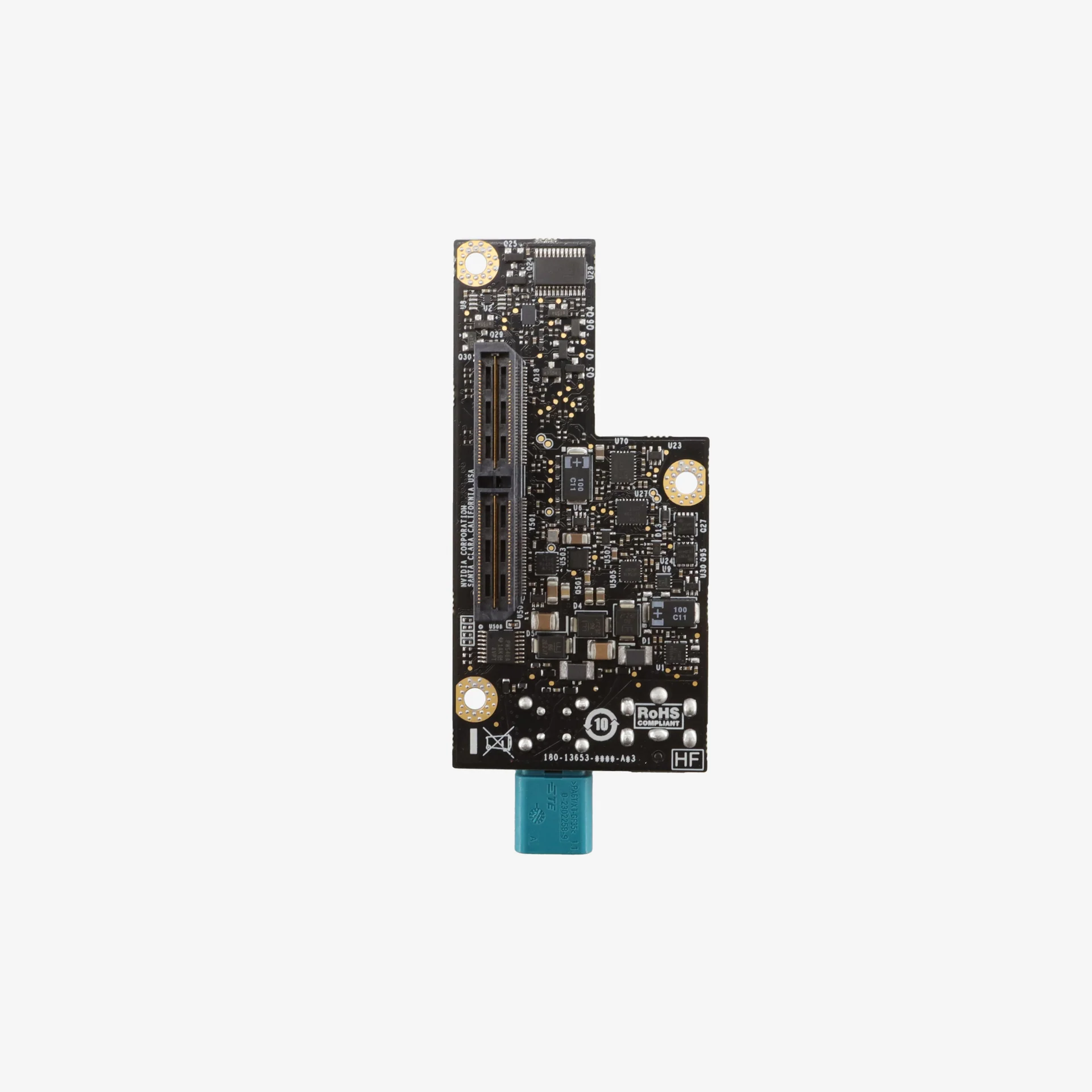

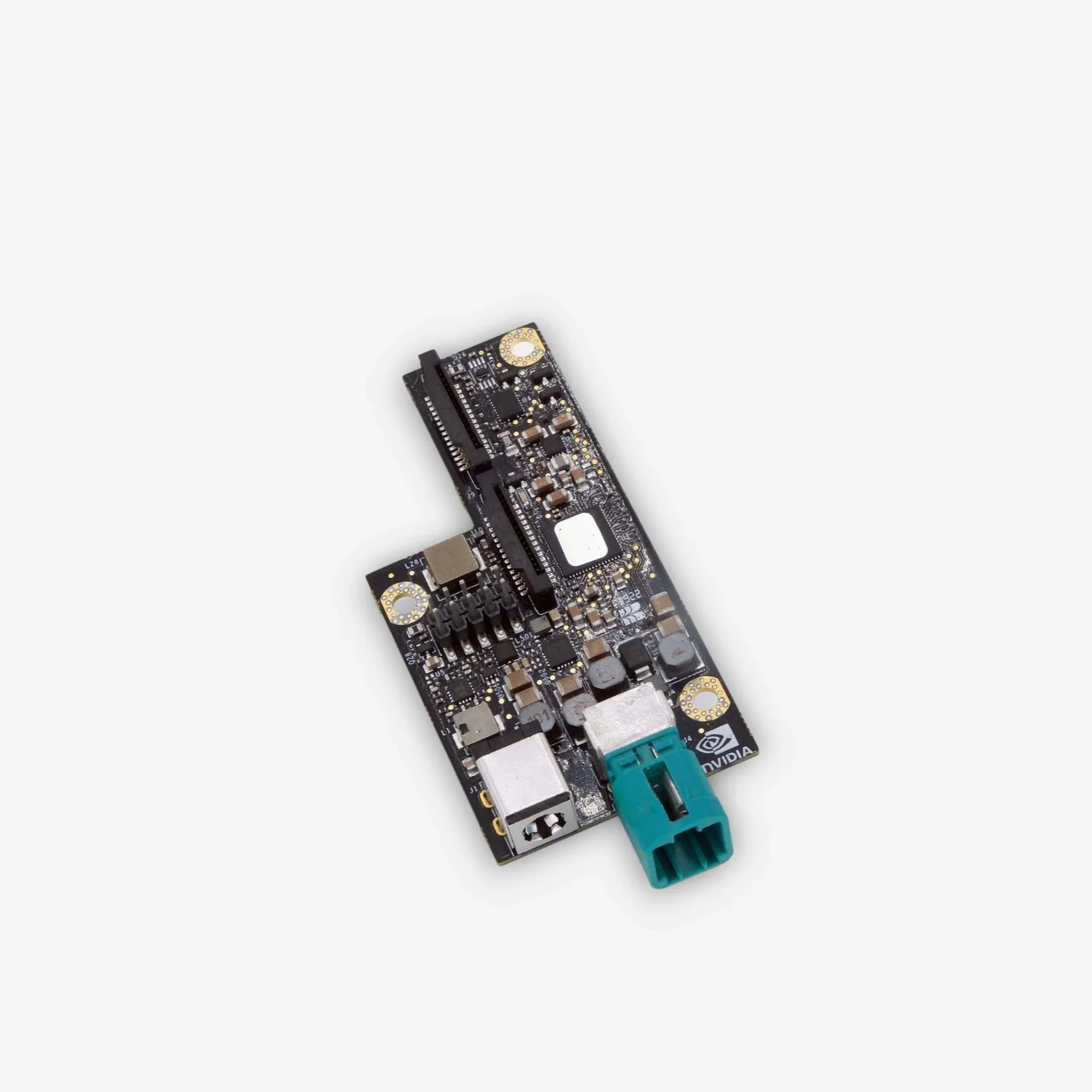

Duo Capture Card

Capture 4* x GMSL2 camera inputs in SD/HD/4K up to 4K@30.
Up to 10Gb/s total bandwidth.
Connects to the CSI port of the Orin Developer Kit.
Includes:

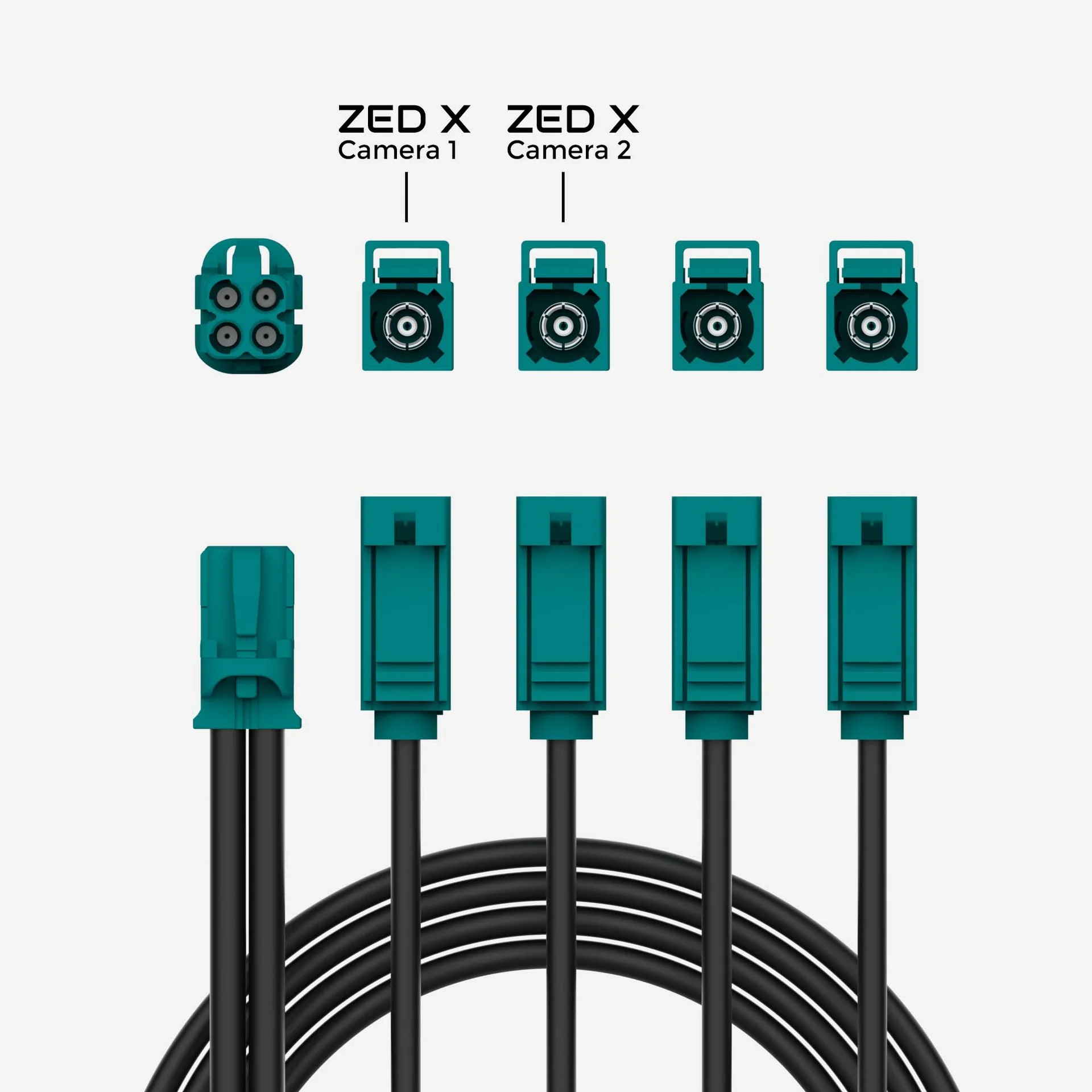

- 1x 0.5m (1.64ft) 1-to-4 GMSL2 cable
- 3x M2.5 x 20mm bolts
- 3x 16mm Spacers

Present

Free shipping radius COUNTRYWIDE

Contact support for detailed quote: Hotline: 84386365636

Buy at Vina Connect Showroom See directions

ARTICLE CONTENT:

Key Features

Dual Fakra GMSL2 connectors for synchronized video capture.
Real-time 3D perception and AI processing with the ZED SDK.
Low-latency performance optimized for robotics and automation.
Compatible with NVIDIA® Jetson Orin Nano, Orin NX and AGX Orin development kits.
Ideal for applications requiring up to four camera setups, such as robot navigation, depth sensing, and surround perception.

Product Features

High performance capture card for Jetson.
Requires external 9 -19V power supply when not used with AGX Orin carrier boards.
View Cable Guide

Weight

30 g

Operating Temperature

-20°C ~ +85°C

Dimensions

81.47 x 39.20 x 31.15 mm (LxWxH)

3.20 x 1.54 x 1.23 inches

Power

Requires external 9-19V DC power supply.

Deserializer

Maxim MAX96712

Interfaces

Interface J4 (Fakra) : 4 pins

Interface J13 (GPIO Header) : 10 pins

Interface J1 (External 9V-19V) : DC Jack | Inner diameter : 2.5mm | Outer diameter : 6.5mm

Interface J9 and J10 (MIPI CSI 15 pins) : 2x15 pins | Cannot be used simultaneously with the Samtec 120 pins connector J501 mm

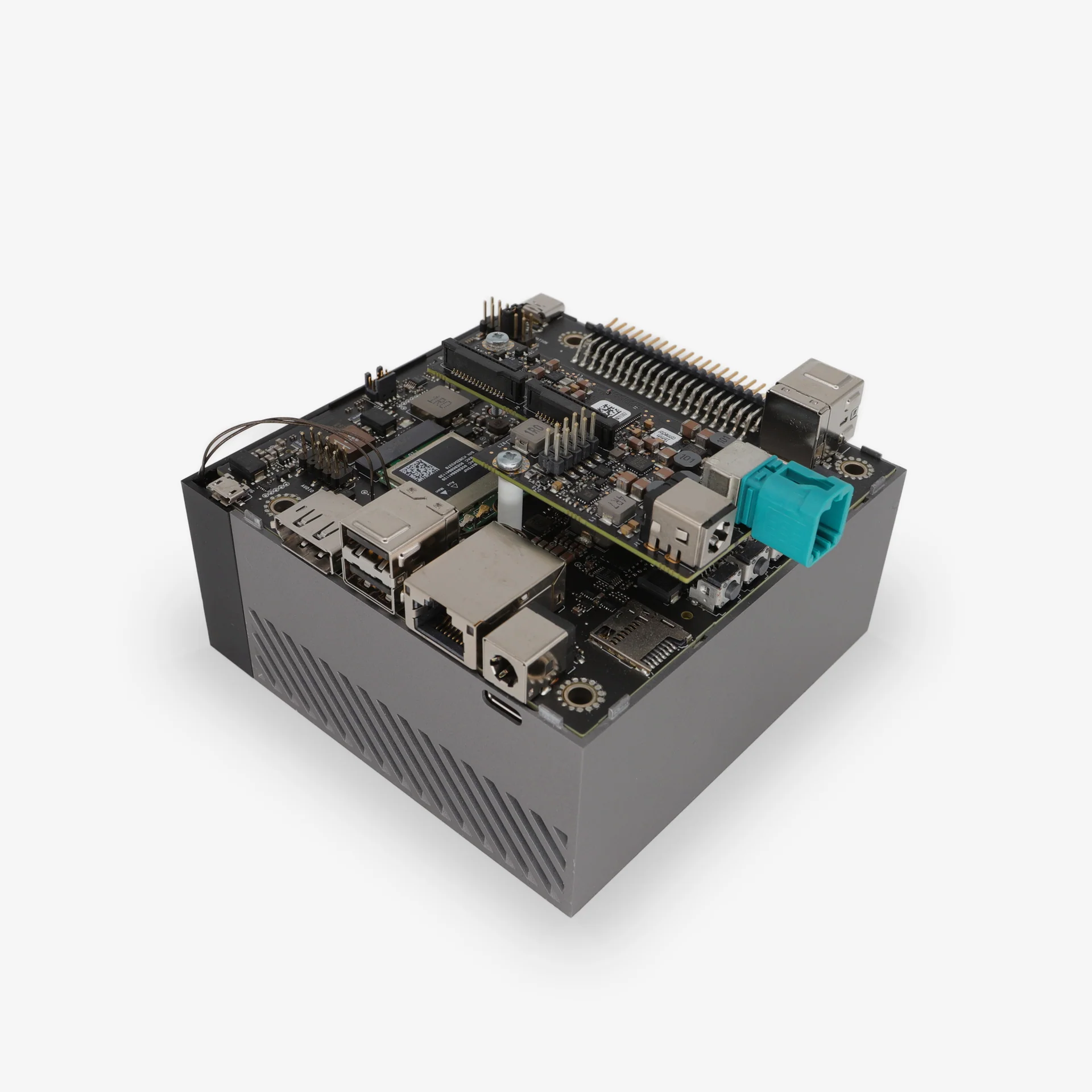

Interface J501 (Samtec to AGX) : 120 pins | Can be used with Orin AGX and Xavier AGX Developer Kits | 16mm board to board distance

Capture Card Compatibility

Use with NVIDIA Jetson AGX Orin, Orin NX and Orin Nano Developer Kits and carrier boards.

Use with NVIDIA Jetson AGX Xavier, Xavier NX Developer Kits and carrier boards.
