ZED Link Capture Card Mono

Status: Còn hàng

Trademark: STEREOLABS

Code: ACC-211000

16 View

Contact

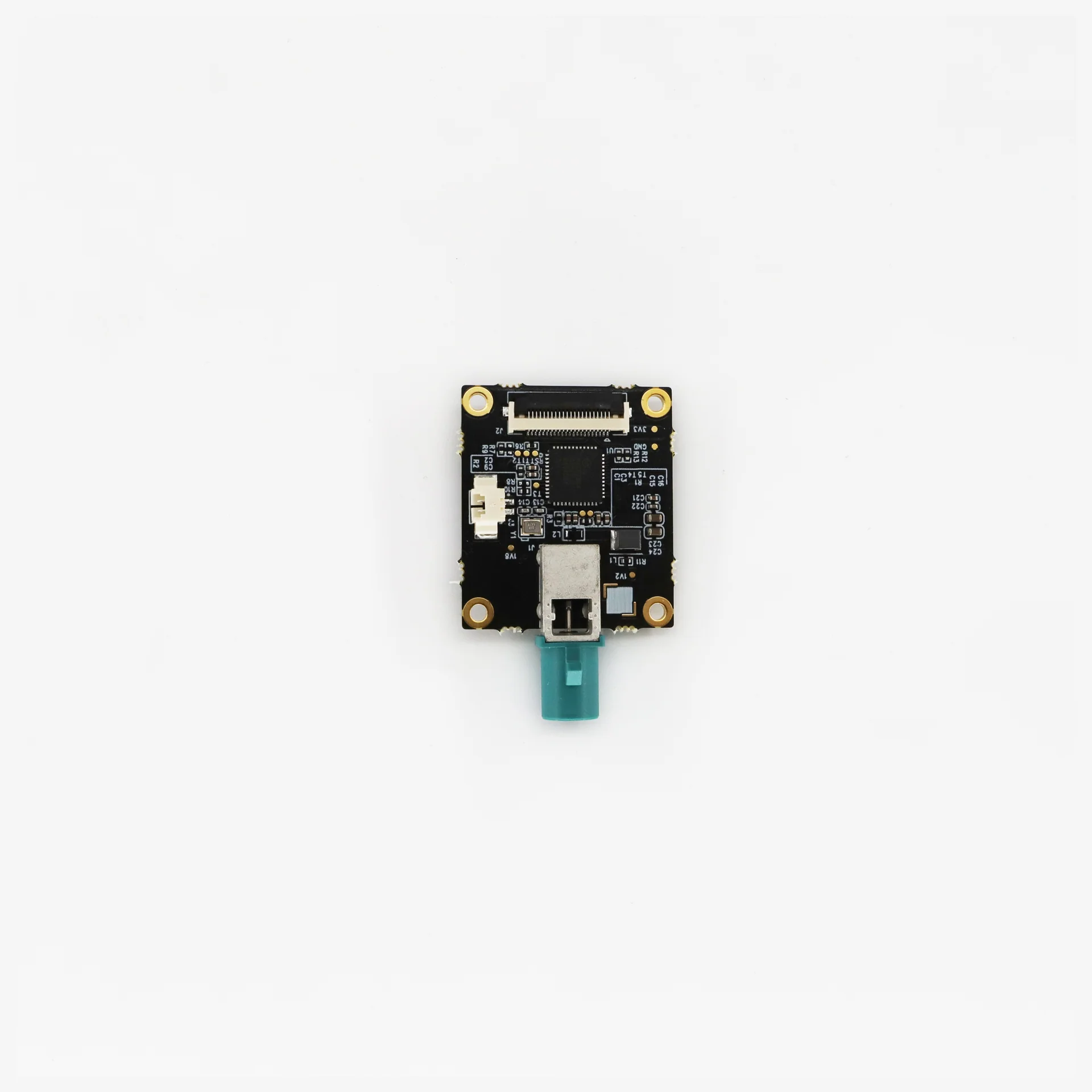

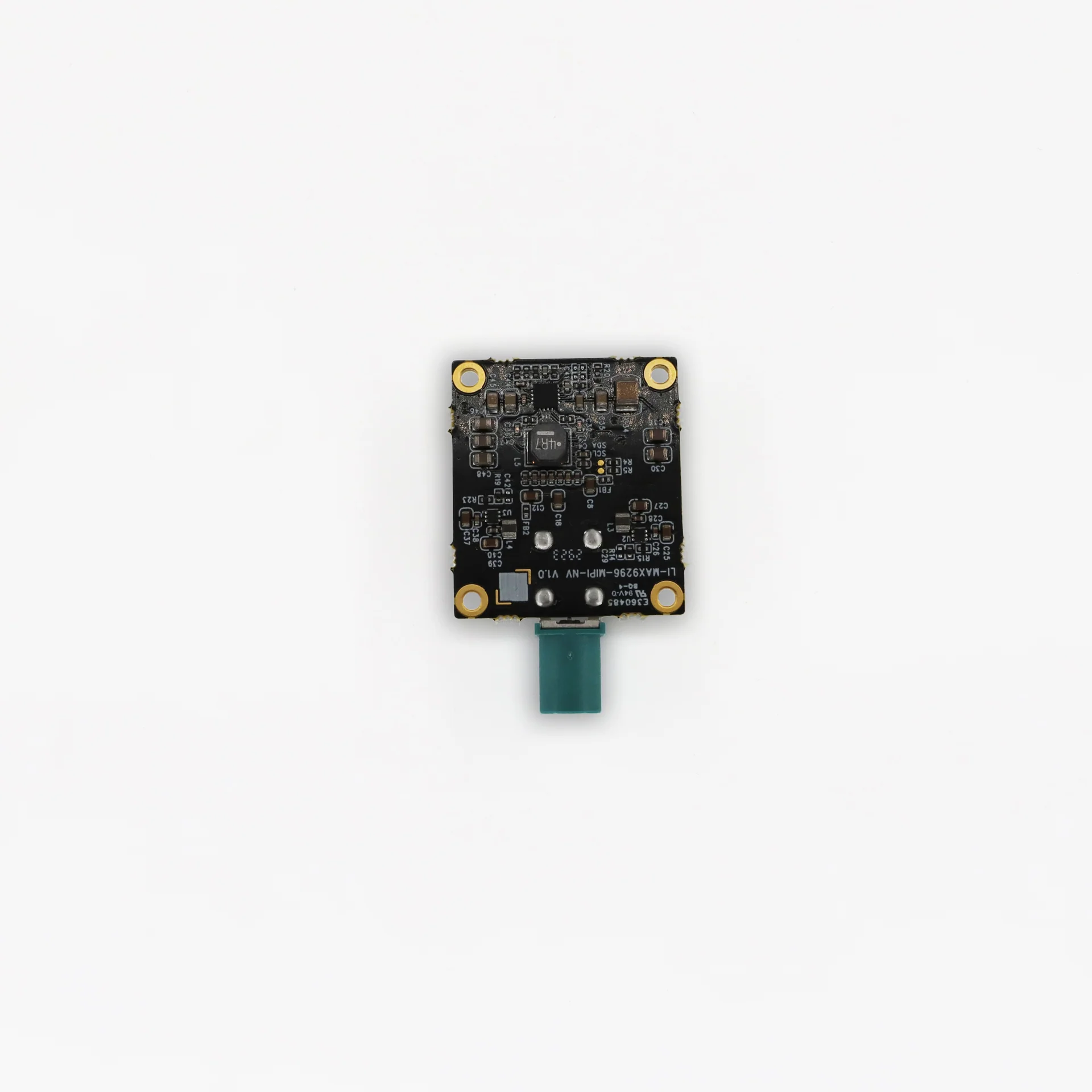

Mono Capture Card

Capture 1x GMSL2 camera input in SD/HD/4K up to 4K@30.
Up to 6Gb/s total bandwidth.

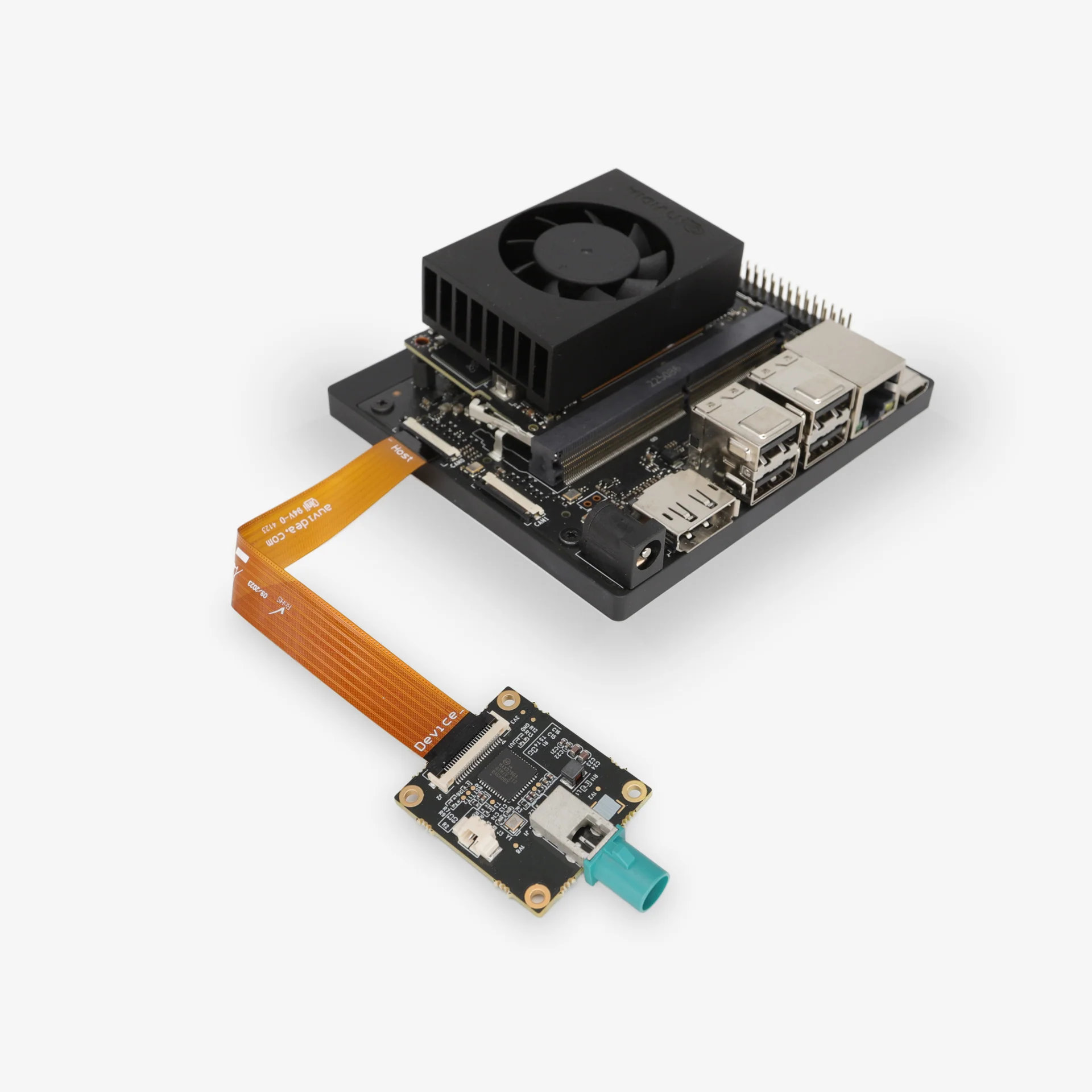

Connects to the CSI port of the carrier board through a 22pin 0.5mm pitch connector.
Includes JST to jack connector and CSI cable.

Present

Free shipping radius COUNTRYWIDE

Contact support for detailed quote: Hotline: 84386365636

Buy at Vina Connect Showroom See directions

ARTICLE CONTENT:

The ZED Link Mono Capture Card provides a dedicated GMSL2 connection for one camera from ZED X or ZED X One series on NVIDIA Jetson Orin platform.

Key Features

Single high-speed GMSL2 input with Fakra connector
Ultra-low latency video capture for robotics and machine vision
Compatible with NVIDIA® Jetson Orin Nano and Orin NX development kits and ZED SDK
Compact form factor ideal for embedded integration
Perfect for projects requiring a streamlined single-camera connection with industrial reliability.

Product Features

High performance capture card for Jetson.
Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
Requires external 9 -14V power supply.
View Cable Guide

Operating Temperature

-20°C ~ +85°C

Weight

8 g

Dimensions

41.55 x 28.00 x 12.25 mm (LxWxH)

1.64 x 1.11 x 0.49 inches

Power

Requires external 9-14V DC power supply.

Deserializer

Maxim MAX9296A

Interfaces

Interface J1 (Fakra) : 1 GMSL2 I/O

Interface J4 (GPIO Header) : 6 pins 2 mm pitch

Interface J3 (External 9V - 14V) : Pitch 2 mm

Interface J2 (MIPI CSI 22 pins) : 22 pins 0.5 mm pitch

Capture Card Compatibility

Use with NVIDIA Jetson Orin NX and Orin Nano Developer Kits and carrier boards.

Use with NVIDIA Jetson Xavier NX and Nano Developer Kits and carrier boards.
