Quad Capture Card

Capture 8** x GMSL2 camera inputs in SD/HD/4K up to 4K@30.\
Up to 40Gb/s total bandwidth.
Connects to the SAMTEC CSI port of Jetson Orin.

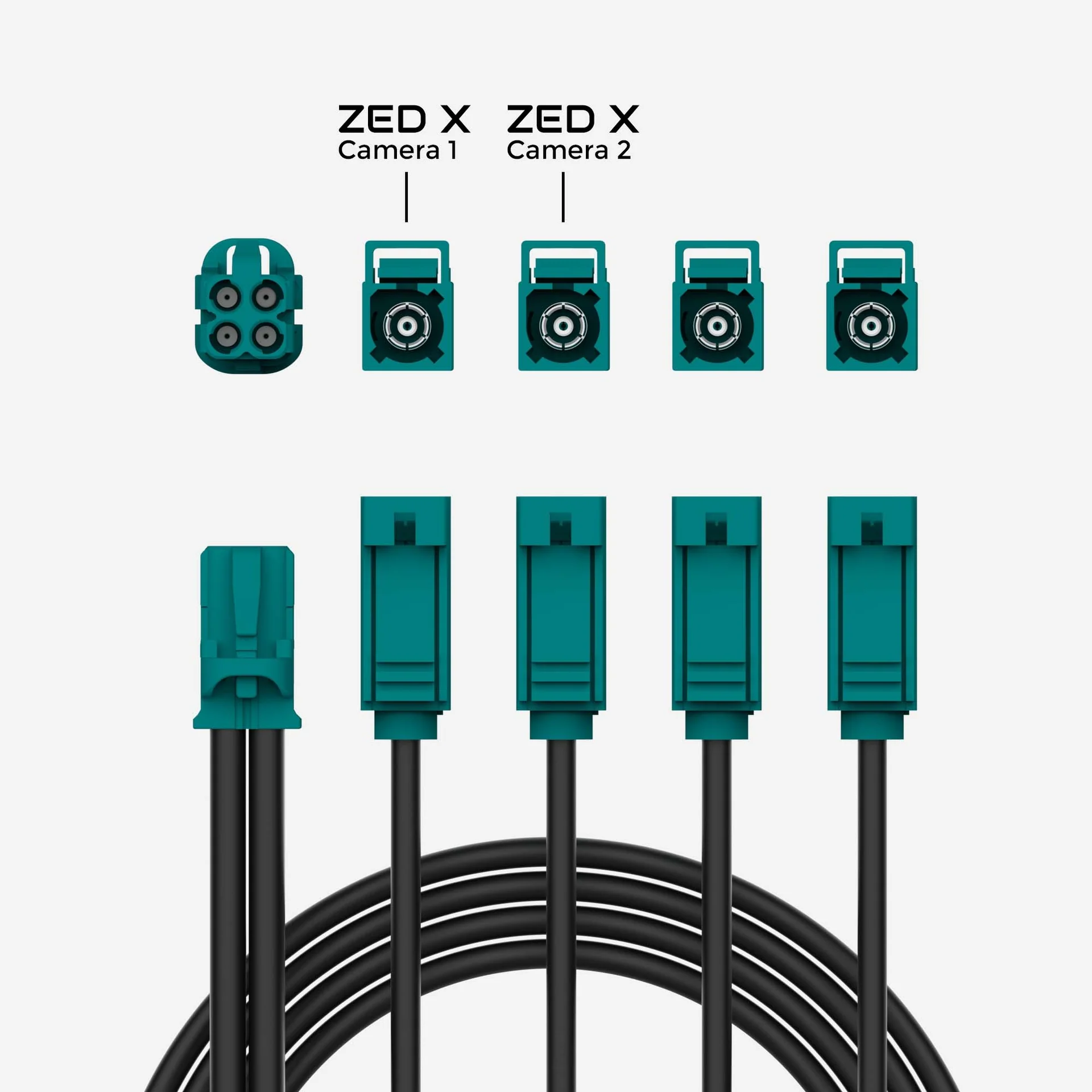

Includes two 0.5m (1.64ft) 1-to-4 GMSL2 M-F cables.

** The ZED Link Quad is limited to only 4x ZED X One 4k inputs, 2 per GMSL port,
8x inputs are compatible with all other camera models.

Present

Free shipping radius COUNTRYWIDE

Contact support for detailed quote: Hotline: +84386365636

Buy at Vina Connect Showroom See directions

ARTICLE CONTENT:

The ZED Link Capture Card Quad delivers eight GMSL2 channels for multi-camera vision systems on NVIDIA Jetson Orin platforms.

Key Features

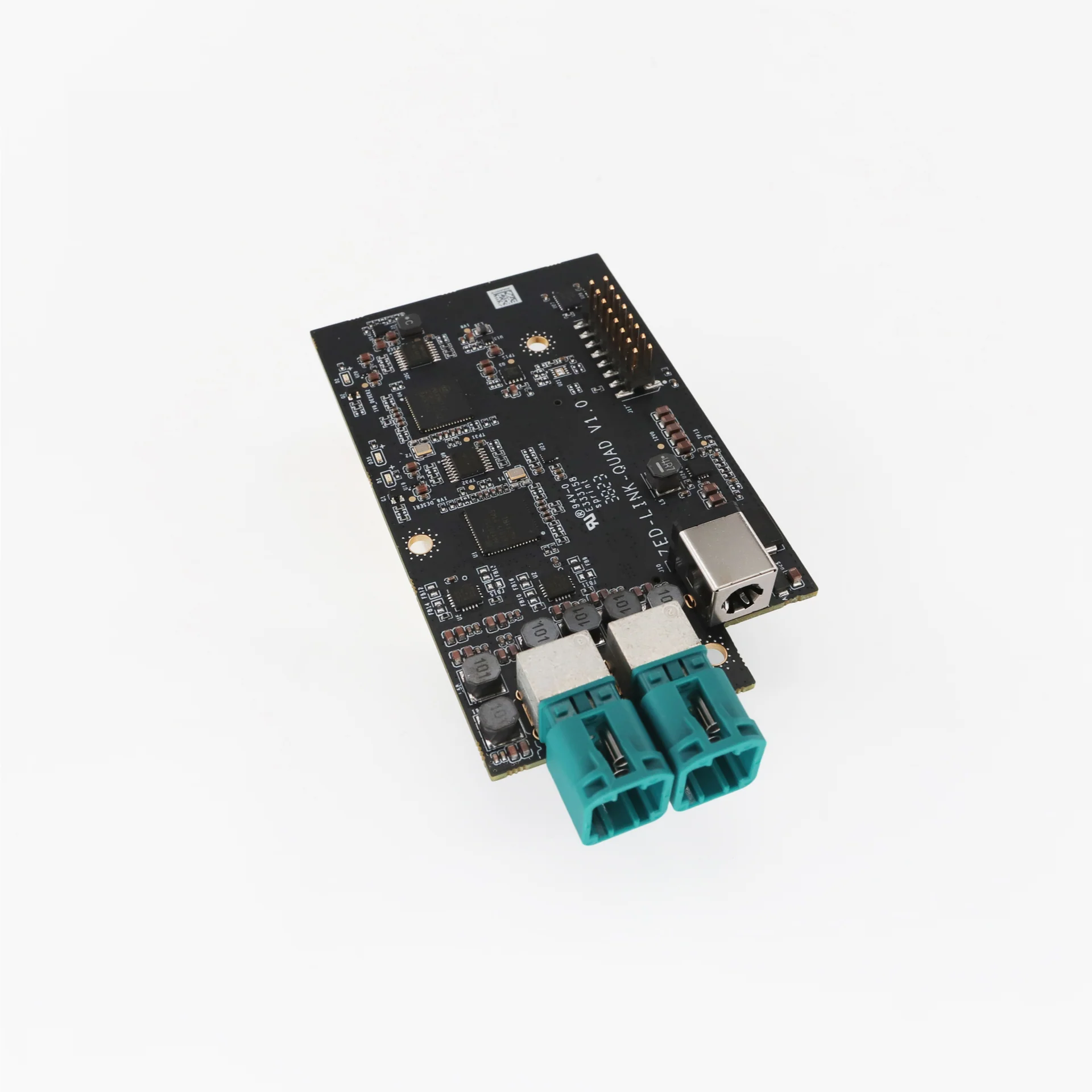

Four Fakra GMSL2 connectors for synchronized capture of up to 8 video streams.
Engineered for surround perception, obstacle detection, and 3D mapping.
Industrial-grade design with ultra-low latency performance.

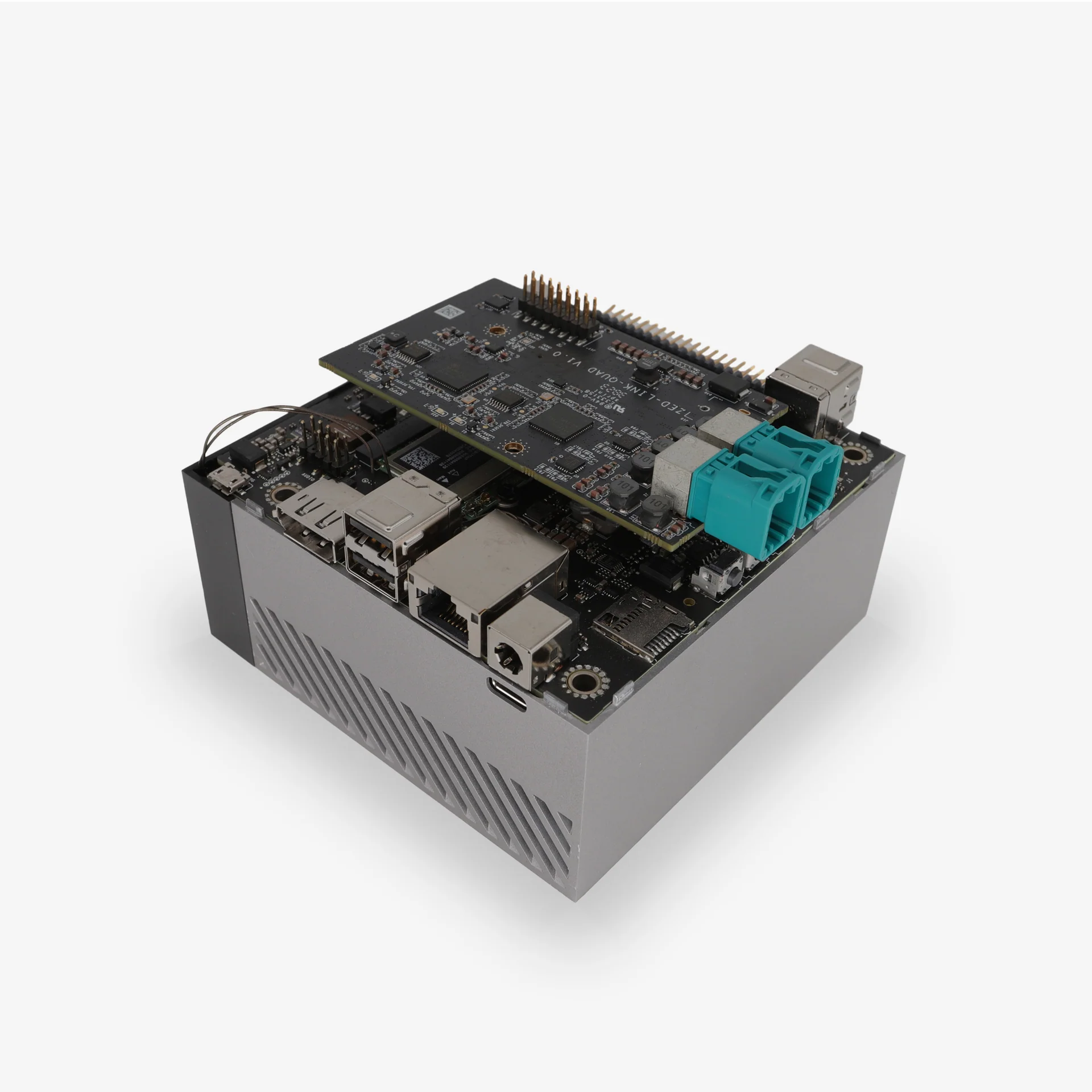

Compatible with NVIDIA® Jetson AGX Orin development kits.
Perfect for building advanced 360° perception systems in robotics, autonomous machines, and smart analytics applications.

Product Features

High performance capture card for Jetson.
Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
Requires external 9-19V power supply.
View Cable Guide

Weight

55 g

Operating Temperature

-20°C ~ +85°C

Dimensions

92.00 x 55.00 x 30.30 mm (LxWxH)

3.63 x 2.17 x 1.20 inches

Power

Requires external 9-19V power supply

Deserializer

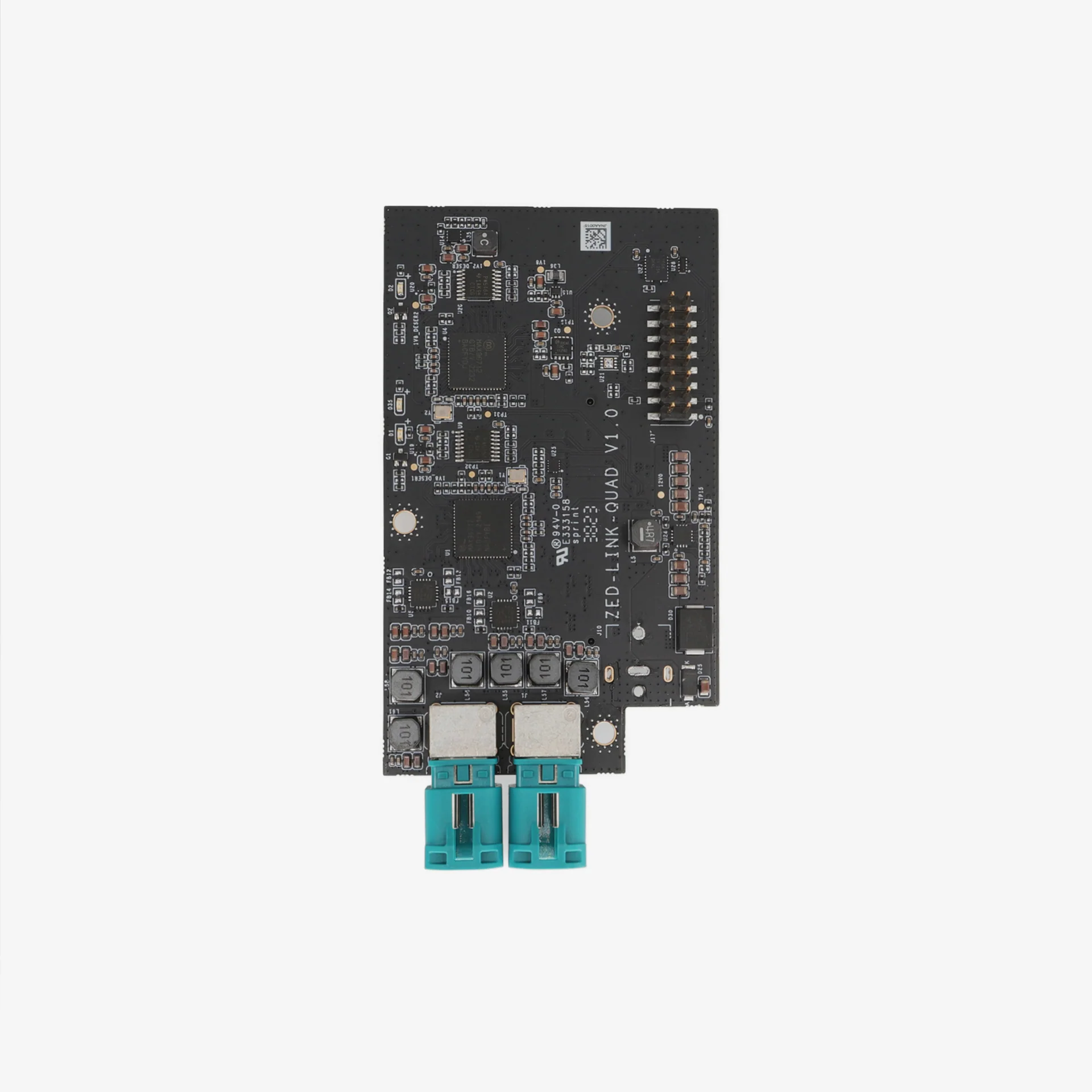

2 x Maxim MAX96712

Interfaces

Interface J1 & J2 (Fakra Z 4x1) : 2x 4 GMSL2 I/O

Interface J17 (GPIO Header) : 16 pins 2.54mm pitch

Interface J10 External Power (9V - 19V) : Pitch 2mm

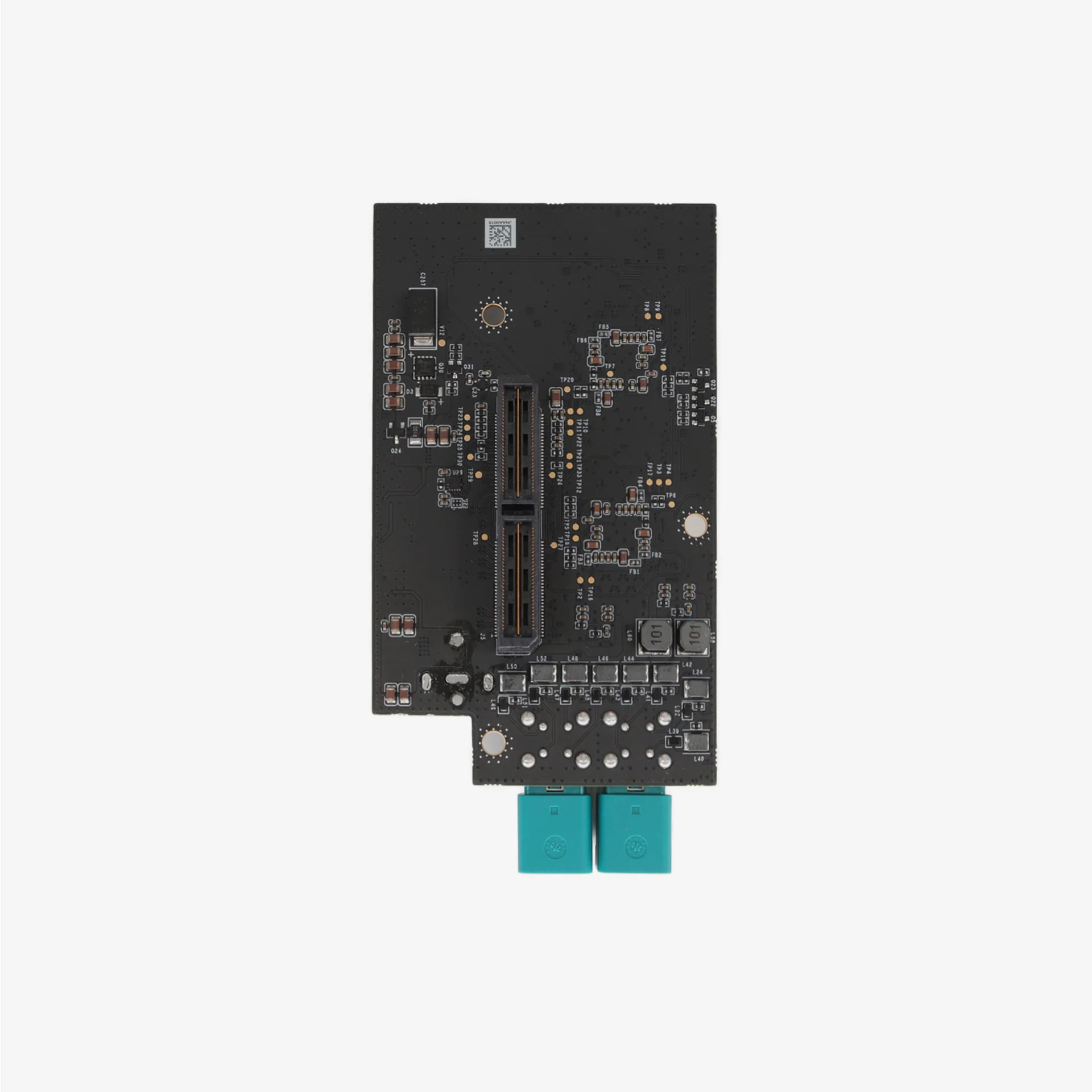

Interface J5 (Samtec to AGX) : Can be used with Orin AGX and Xavier AGX Developer Kits | 16mm board to board distance

Capture Card Compatibility

Use with NVIDIA Jetson AGX Orin, AGX Xavier and carrier boards.
